第9章 性能优化技术*

9.1 Python程序性能分析

  • 程序性能分析的作用
  • 确定程序运行效率低的原因
  • 寻找代码的运行瓶颈
  • 对症下药选用最恰当的性能优化技术

9.1.1 timetimeit

time

使用time模块获取程序的运行时间常用如下几种方式:

  • time.time:获取系统当前时间的时间戳;
  • time.perf_counter:获取当前程序的高精度的CPU级运行时间;
  • time.process_time:获取当前程序的有效进程时间
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
import time

def fun():
    sum_value = 0
    for i in range(1000000):
        sum_value += i

start = time.perf_counter()
fun()
time.sleep(1)
end = time.perf_counter()
print('perf_counter:', end - start)
1
perf_counter: 1.0736476539996147
1
2
3
4
5
start = time.process_time()
fun()
time.sleep(1)
end = time.process_time()
print('process_time:', end - start)  # process_time中不包含time.sleep(1)造成的程序休眠时间
1
process_time: 0.07273000000000018

timeit

  • timeit常用于测试较小的代码片段的执行时间
  • 运行方式
  • 命令行方式
  • Python接口

  • 命令行方式

1
2
$ python -m timeit '"-".join(str(n) for n in range(100))'
10000 loops, best of 5: 23.5 usec per loop
  • 命令行常用的参数如下表所示。
参数 缩写 功能
--number -n 代码片段执行次数
--repeat -r 重复次数
--setup -s 准备运行环境,如import语句等
--process -p 测量进程时间
--unit -u 时间单位,可以取值nsecusecmsecsec
1
2
$ python -m timeit -n 2000 -r 10 '"-".join(str(n) for n in range(100))'
2000 loops, best of 10: 23.5 usec per loop
  • Python接口
  • timeit.timit函数
  • timeit.repeat函数
1
2
import timeit
timeit.timeit('"-".join(str(n) for n in range(100))', number=10000)
1
0.2476290219992734
1
timeit.repeat('"-".join(str(n) for n in range(100))', number=10000, repeat=5)
1
2
3
4
5
[0.2479564710001796,
 0.2286210049996953,
 0.2277683940001225,
 0.24715779699999985,
 0.23120317899974907]
  • 在脚本代码中测试函数执行时间
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
import timeit

def bubble_sort(lst):
    """冒泡排序"""
    for i in range(len(lst)-1, 0, -1):
        for j in range(0, i):
            if lst[j] > lst[j + 1]:
                lst[j], lst[j+1] = lst[j+1], lst[j]
    return lst

t1 = timeit.timeit('bubble_sort(lst)',
                  setup='''from __main__ import bubble_sort; import random; lst = list(range(1000)); random.shuffle(lst)''',
                  number=10)

t2 = timeit.repeat('bubble_sort(lst)',
                  setup='''from __main__ import bubble_sort; import random; lst = list(range(1000)); random.shuffle(lst)''',
                  number=10,
                  repeat=3)
print(t1)
print(t2)
1
2
0.5808773019998625
[0.5691154360001747, 0.5654969030001666, 0.5676186800001233]

9.1.2 profile

  • profile是Python内置一组用于收集和分析Python 程序执行过程的工具
  • 能够程序运行过程中每个函数调用时间的详细统计数据
  • profile的两种实现
  • profile
    • Python内置标准库中的模块
    • 会显著增加程序的运行开销,适用于需要对分析功能进行扩展的场景
  • cProfile
    • profile的C扩展插件
    • 自身运行开销较小,适合于分析长时间运行的程序

cProfile

  • test_profile.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
def fib(n):
    if n == 0:
        return 0
    elif n == 1:
        return 1
    else:
        return fib(n - 1) + fib(n - 2)

def fib_list(n):
    seq = []
    if n > 0:
        seq.extend(fib_list(n - 1))
    seq.append(fib(n))
    return seq

if __name__ == '__main__':
    fib_list(30)

1
$ python -m cProfile test_profile.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
         7049218 function calls (96 primitive calls) in 2.015 seconds

   Ordered by: standard name

   ncalls  tottime  percall  cumtime  percall filename:lineno(function)
        1    0.000    0.000    2.015    2.015 test_profile.py:1(<module>)
7049123/31    2.014    0.000    2.014    0.065 test_profile.py:1(fib)
     31/1    0.000    0.000    2.015    2.015 test_profile.py:10(fib_list)
        1    0.000    0.000    2.015    2.015 {built-in method builtins.exec}
       31    0.000    0.000    0.000    0.000 {method 'append' of 'list' objects}
        1    0.000    0.000    0.000    0.000 {method 'disable' of '_lsprof.Profiler' objects}
       30    0.000    0.000    0.000    0.000 {method 'extend' of 'list' objects}

  • 共检测了7049218个函数调用,其中96个是原始调用(非递归调用)。函数fib的递归调用次数为7049123,原始调用次数为31,耗费总时间是2.014

  • 分析结果中各列数值的含义如下表所示。

列名 含义
ncalls 调用次数(若存在递归调用则分别显示递归调用次数和原始调用次数)
tottime 函数调用总时间(不包括调用子函数的时间)
percall 平均调用时间( tottime 除以 ncalls )
cumtime 函数及其所有子函数消耗的累积时间(对于递归函数来说是准确的)
percall 函数运行一次的平均时间(cumtime 除以原始调用次数)
filename:lineno(function) 函数所在的文件、行数及函数名
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
def fib(n):
    if n == 0:
        return 0
    elif n == 1:
        return 1
    else:
        return fib(n - 1) + fib(n - 2)

def fib_list(n):
    seq = []
    if n > 0:
        seq.extend(fib_list(n - 1))
    seq.append(fib(n))
    return seq

import cProfile
cProfile.run('fib_list(30)')
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
         7049218 function calls (96 primitive calls) in 1.998 seconds

   Ordered by: standard name

   ncalls  tottime  percall  cumtime  percall filename:lineno(function)
7049123/31    1.997    0.000    1.997    0.064 <ipython-input-6-3823c2297ba6>:1(fib)
     31/1    0.000    0.000    1.998    1.998 <ipython-input-6-3823c2297ba6>:9(fib_list)
        1    0.000    0.000    1.998    1.998 <string>:1(<module>)
        1    0.000    0.000    1.998    1.998 {built-in method builtins.exec}
       31    0.000    0.000    0.000    0.000 {method 'append' of 'list' objects}
        1    0.000    0.000    0.000    0.000 {method 'disable' of '_lsprof.Profiler' objects}
       30    0.000    0.000    0.000    0.000 {method 'extend' of 'list' objects}


1
2
3
4
5
6
import cProfile
p = cProfile.Profile()
p.enable()
fib_list(30)
p.disable()
p.print_stats(sort='tottime')
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
         7049260 function calls (138 primitive calls) in 2.040 seconds

   Ordered by: internal time

   ncalls  tottime  percall  cumtime  percall filename:lineno(function)
7049123/31    2.040    0.000    2.040    0.066 <ipython-input-6-3823c2297ba6>:1(fib)
     31/1    0.000    0.000    2.040    2.040 <ipython-input-6-3823c2297ba6>:9(fib_list)
        2    0.000    0.000    0.000    0.000 {built-in method builtins.compile}
        2    0.000    0.000    2.040    1.020 interactiveshell.py:3293(run_code)
       30    0.000    0.000    0.000    0.000 {method 'extend' of 'list' objects}
       31    0.000    0.000    0.000    0.000 {method 'append' of 'list' objects}
        2    0.000    0.000    0.000    0.000 codeop.py:135(__call__)
        2    0.000    0.000    0.000    0.000 contextlib.py:82(__init__)
        4    0.000    0.000    0.000    0.000 compilerop.py:138(extra_flags)
        1    0.000    0.000    0.000    0.000 <ipython-input-7-9649c2a4d5ce>:5(<module>)
        2    0.000    0.000    0.000    0.000 hooks.py:103(__call__)
        2    0.000    0.000    0.000    0.000 contextlib.py:117(__exit__)
        2    0.000    0.000    0.000    0.000 contextlib.py:108(__enter__)
        4    0.000    0.000    0.000    0.000 {built-in method builtins.getattr}
        2    0.000    0.000    2.040    1.020 {built-in method builtins.exec}
        2    0.000    0.000    0.000    0.000 traitlets.py:545(__get__)
        2    0.000    0.000    0.000    0.000 contextlib.py:238(helper)
        2    0.000    0.000    0.000    0.000 traitlets.py:526(get)
        1    0.000    0.000    2.040    2.040 <ipython-input-7-9649c2a4d5ce>:4(<module>)
        2    0.000    0.000    0.000    0.000 interactiveshell.py:3231(compare)
        4    0.000    0.000    0.000    0.000 {built-in method builtins.next}
        2    0.000    0.000    0.000    0.000 ipstruct.py:125(__getattr__)
        2    0.000    0.000    0.000    0.000 interactiveshell.py:1276(user_global_ns)
        2    0.000    0.000    0.000    0.000 hooks.py:168(pre_run_code_hook)
        1    0.000    0.000    0.000    0.000 {method 'disable' of '_lsprof.Profiler' objects}


pstats

  • cProfileprofile的分析结果可以保存为二进制文件,pstats用于对文件中的分析结果进行进一步的统计分析

  • 将分析结果保存为文件有两种方式:

  • 在命令行中:python -m cProfile -o result.out test_profile.py)
  • 在代码中:cProfile.run(‘fib_list(30)'), filename=”result.out”)

  • pstats模块中常用的函数有:

  • strip_dirs:去掉无关的路径信息
  • sort_stats:对分析结果进行排序
  • print_stats:输出分析结果,可以指定输出行数

  • pstats模块中常用的函数有:

  • strip_dirs:去掉无关的路径信息
  • sort_stats:对分析结果进行排序
  • print_stats:输出分析结果,可以指定输出行数
1
2
3
4
5
6
7
import pstats
p = pstats.Stats('result.out')
p.strip_dirs().sort_stats('name').print_stats()
print('-'*100)
p.sort_stats('cumulative').print_stats()
print('-'*100)
p.sort_stats('time').print_stats()
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
---------------------------------------------------------------------------

FileNotFoundError                         Traceback (most recent call last)

<ipython-input-8-85ff513ed0d6> in <module>
      1 import pstats
----> 2 p = pstats.Stats('result.out')
      3 p.strip_dirs().sort_stats('name').print_stats()
      4 print('-'*100)
      5 p.sort_stats('cumulative').print_stats()


~/anaconda3/envs/lesson/lib/python3.8/pstats.py in __init__(self, stream, *args)
     94             arg = args[0]
     95             args = args[1:]
---> 96         self.init(arg)
     97         self.add(*args)
     98


~/anaconda3/envs/lesson/lib/python3.8/pstats.py in init(self, arg)
    108         self.stats = {}
    109         self.sort_arg_dict = {}
--> 110         self.load_stats(arg)
    111         try:
    112             self.get_top_level_stats()


~/anaconda3/envs/lesson/lib/python3.8/pstats.py in load_stats(self, arg)
    121             return
    122         elif isinstance(arg, str):
--> 123             with open(arg, 'rb') as f:
    124                 self.stats = marshal.load(f)
    125             try:


FileNotFoundError: [Errno 2] No such file or directory: 'result.out'

9.2 即时编译技术

9.2.1 即时编译的概念

  • 计算机程序常见运行方式
  • 编译执行
    • 优点:编译一次可多次执行,运行速度快
    • 缺点:难以支持许多动态特性
  • 解释执行
    • 优点:针对每条语句进行解释,容易实现语言的动态特性
    • 缺点:每次执行语句都需要重新编译,运行速度慢
  • 即时(Just In Time, JIT)编译
  • 兼具编译执行和解释执行特点
  • 需重复执行的代码被编译、优化并缓存供后续使用

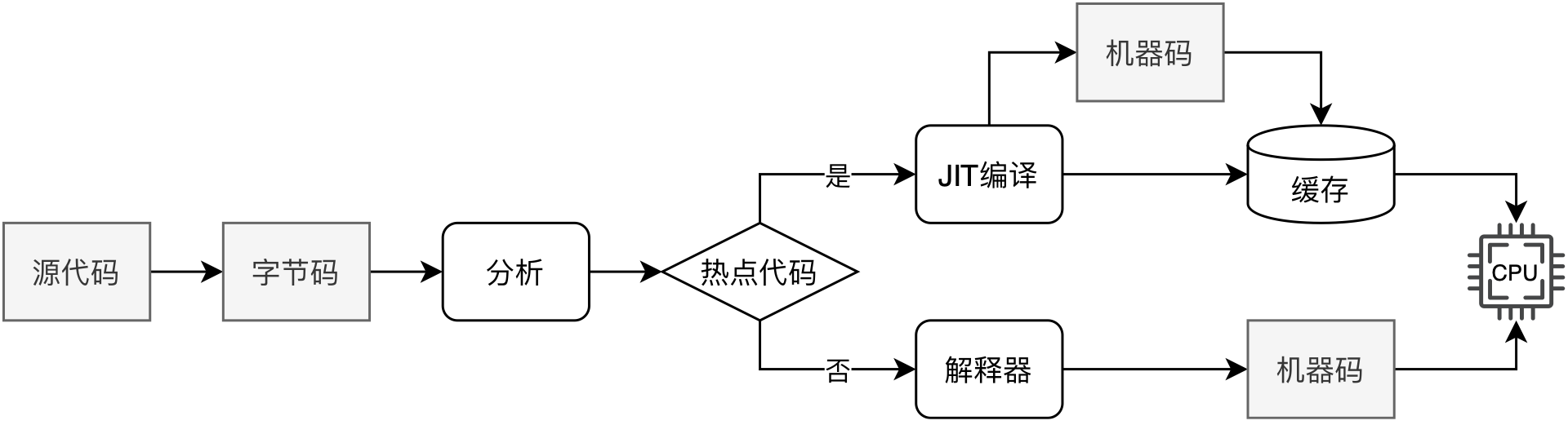

  • 即时编译的过程

  • 基于JIT的Python优化方案
  • PyPy
  • Numba
  • Jyson
  • pyston

9.2.2 PyPy

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
# pypy_test.py
import timeit
def bubble_sort(lst):
    """冒泡排序"""
    for i in range(len(lst)-1, 0, -1):
        for j in range(0, i):
            if lst[j] > lst[j + 1]:
                lst[j], lst[j+1] = lst[j+1], lst[j]
    return lst

t = timeit.timeit('bubble_sort(lst)',
                  setup='''from __main__ import bubble_sort; \
                  import random; lst = list(range(1000)); random.shuffle(lst)''',
                  number=10)
print(t)
1
0.5926239299997178
1
2
3
4
5
$ python pypy_test.py
0.571357171
$
$ pypy3 pypy_test.py
0.022235398006159812

9.2.3 Numba

  • Numba
  • 是一种以Python第三方工具包的形式实现的即时编译器
  • 适用于包含了Numpy数组、函数和循环的代码
  • pip install numba
  • 使用
  • 利用装饰器修饰函数或类
    • 在程序执行的过程中相应的代码片段不再使用Python解释器执行,而是使用Numba的即时编译器执行
  • 适用场景
    • 对于数学运算类型的任务、包含了较多循环语句的代码

基本用法

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
import timeit
from numba import jit

def factorial(n):
    '''阶乘'''
    fac = 1
    for i in range(1, n+1):
        fac = fac*i
    return fac

@jit
def factorial_jit(n):
    fac = 1
    for i in range(1, n+1):
        fac = fac*i
    return fac
1
timeit.timeit('factorial(10000)', setup='from __main__ import factorial', number=100)
1
2.0420013419998213
1
timeit.timeit('factorial_jit(10000)', setup='from __main__ import factorial_jit', number=100)
1
7.113244510999721

Eager编译

  • jit装饰器中指定被修饰函数的签名
  • 即时编译器不用再推测参数的数据类型,因而在脚本被导入或运行的时候就可以对函数进行编译
1
2
3
4
5
from numba import jit, int32

@jit(int32(int32, int32))
def f(x, y):
    return x + y

函数的实参类型与签名不一致时可能导致意外的运算结果

1
f(2**31, 2**31 + 1)
1
1
  • numba中常用的数据类型
类型 含义
void 无返回值(或返回None)的函数的返回类型
intc, uintc 相当于 C语言中的 intunsigned int
int8, uint8, int16, uint16, int32, uint32, int64, uint64 相应宽度的有符号或无符号整数
float32, float64 单精度和双精度浮点数
complex64, complex128 单精度和双精度复数
int32[:], float[:32] 数组,可以是其他任意类型的数组

nopython 模式

  • Numba即时编译器有两种编译模式
  • nopython 模式
    • 编译器对函数进行编译,在运行过程不需要Python解释器的参与
  • 对象模式
    • 编译能够识别的部分,其余的部分还交给Python解释器执行
  • 默认情况下
  • 当nopython模式编译失败时,numba可以切换至对象模式
  • jit装饰器中指定nopython=True
  • 可强制使用nopython模式,如果编译失败不会切换至对象模式,而是会抛出错误
  • @jit(nopython=True)相当于@njit装饰器
1
2
3
@jit(nopython=True)
def f(x, y):
    return x + y

缓存编译结果

  • jit装饰器中指定参数cache=True
  • numba会将函数编译的结果保存至文件缓存,再次执行时不必重新编译
1
2
3
@jit(cache=True)
def f(x, y):
    return x + y

9.3 混合编程概念及环境搭建

混合编程

  • 混合编程
  • 将计算密集型的任务利用其他语言实现然后交由 Python 调用,从而实现性能的提升
  • Python 与常见的计算机编程语言如 Java、C#,甚至 R 和 Matlab 等 都能够实现混合编程
  • 混合编程方法
  • 在 Python 中调用 C/C++ 的动态库文件
    • 利用 Python 标准库中的ctypes实现
  • 利用 C/C++ 编写 Python 的扩展,使 C/C++ 库能够像普通 Python 模块一样 使用
    • 可以使用 Python 内置的 C 语言 API 实现
    • 也可以使用第三方工具如 Cython、Boost.Python、SWIG、pybind11 等来实现

环境搭建

  • Windows 系统(https://wiki.python.org/moin/WindowsCompilers
  • MingW-w64工具链
    • 新建 Anaconda 虚拟环境并激活
    • 安装MingW-w64工具链:conda install libpython m2w64-toolchain -c msys2
    • 配置默认编译器:
    • 在虚拟环境所在路径中找到Lib\distutils文件夹,在其中创建 distutils.cfg 文件并写入如下内容
      1
      2
      3
      4
      [build]
      compiler=mingw32
      [build_ext]
      compiler=mingw32

  • Linux
  • Debian/Ubuntu:apt-get install build-essential
  • Redhat/CentOS:yum groupinstall "development tools"
  • macOS

  • 安装Xcode命令行工具即可:xcode-select --install

9.4 利用 ctypes 实现混合编程

  • ctypes
  • Python 标准库中用于调用 C 动态链接库函数的功能模块
  • 实现混合编程的一种基础的方法,适用于不太复杂的混合编程应用场景

9.4.1 C 函数库的调用

一般 C 函数的调用

  • 将如下代码保存为文件add.c
1
2
3
4
// 文件add.c
double add(double x, double y) {
    return x + y;
}
  • 将add.c编译为动态链接库文件
  • gcc -o libadd.so -shared -fPIC add.c

    • - o选项用于指定输出的动态链接库文件名
    • - shared选项用于指定将源代码编译为动态链接库
    • - fPIC选项用于指定将动态链接库编译为位置无关的代码
  • 在相同路径中的Python代码中调用

1
2
3
4
5
6
import ctypes
lib = ctypes.cdll.LoadLibrary('./libadd.so')
add = lib.add
add.argtypes = (ctypes.c_double, ctypes.c_double)  # 参数的数据类型
add.restype = ctypes.c_double                      # 返回值的数据类型
print(add(1.0, 2))
  • ctypes 数据类型
ctypes 类型 C 类型 Python 类型
c_bool _Bool bool
c_char char 长为1的bytes
c_wchar wchar_t 长为1的str
c_byte char int
c_short short int
c_int int int
c_long long int
c_longlong long long int
c_float float float
c_double double float
c_longdouble long double float
c_char_p char * bytesNone
c_wchar_p wchar_t * strNone
c_void_p void * intNone

指针作为参数

  • C语言文件
1
2
3
4
5
6
// divide.c
int divide(int a, int b, int *remainder) {
    int quot = a / b;
    *remainder = a % b;
    return quot;
}
  • 编译
1
gcc -o libdivide.so -shared -fPIC divide.c
  • 调用
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
import ctypes
_lib = ctypes.cdll.LoadLibrary('libdivide.so')
_divide = _lib.divide
_divide.argtypes = (ctypes.c_int, ctypes.c_int, ctypes.POINTER(ctypes.c_int))
_divide.restype = ctypes.c_int

def divide(x, y):
    rem = ctypes.c_int()
    quot = _divide(x, y, rem)
    return quot, rem.value
1
2
>>> divide(42, 8)
(5, 2)

数组作为参数

  • C语言文件
1
2
3
4
5
6
7
8
9
// avg.c
double avg(double *a, int n) {
    int i;
    double total = 0.0;
    for (i = 0; i < n; i++) {
        total += a[i];
    }
    return total / n;
}
  • 编译
1
gcc -o libavg.so -shared -fPIC avg.c
  • 调用
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
import ctypes
_lib = ctypes.cdll.LoadLibrary('libavg.so')

class DoubleArray:
    def from_param(self, param):
        return ((ctypes.c_double)*len(param))(*param)

array = DoubleArray()
_avg = _lib.avg
_avg.argtypes = (array, ctypes.c_int)
_avg.restype = ctypes.c_double

def avg(values):
    return _avg(values, len(values))
1
2
>>> avg([1, 2, 3, 4, 5, 6])
3.5

结构体作为参数

  • C语言文件
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
// dist.c

#include <math.h>

typedef struct Point {
    double x,y;
} Point;

double distance(Point *p1, Point *p2) {
    return hypot(p1->x - p2->x, p1->y - p2->y);
}
  • 编译
1
gcc -o libdist.so -shared -fPIC dist.c
  • 调用
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
import ctypes
_lib = ctypes.cdll.LoadLibrary('libdist.so')

class Point(ctypes.Structure):
    _fields_ = [('x', ctypes.c_double),
                ('y', ctypes.c_double)]

distance = _lib.distance
distance.argtypes = (ctypes.POINTER(Point), ctypes.POINTER(Point))
distance.restype = ctypes.c_double
1
2
3
4
>>> p1 = Point(1, 2)
>>> p2 = Point(4, 5)
>>> distance(p1, p2)
4.242640687119285

9.4.2 C++ 类的包装

  • ctypes不支持将C++代码,因此需要将C++类转换为C函数来调用
  • 如果要以类的方式使用,需要手动将动态链接库中暴露出的C函数映射为Python的类

  • C++文件

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
// rectangle.cpp

class Rectangle
{
public:
    Rectangle(float, float);
    double area();
    double perimeter();

private:
    float width_;
    float height_;
};

Rectangle::Rectangle(float width, float height)
{
    width_ = width;
    height_ = height;
}

double Rectangle::area()
{
    return width_ * height_;
}

double Rectangle::perimeter()
{
    return 2 * width_ + 2 * height_;
}

// 以C的方式编译如下函数
extern "C"
{
    Rectangle *Rectangle_new(double width, double height)
    {
        return new Rectangle(width, height);
    }
    double area(Rectangle *rect)
    {
        return rect->area();
    }
    double perimeter(Rectangle *rect)
    {
        return rect->perimeter();
    }
}
  • 编译
1
g++ -o librectangle.so -shared -fPIC rectangle.cpp
  • 映射Python类
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
import ctypes

_lib = ctypes.cdll.LoadLibrary('librectangle.so')

class Rectangle:
    def __init__(self, width, height):
        self._methods = dict()
        self._methods['area'] = _lib.area
        self._methods['perimeter'] = _lib.perimeter

        _lib.Rectangle_new.argtypes = (ctypes.c_double, ctypes.c_double)
        _lib.Rectangle_new.restype = ctypes.c_void_p

        _lib.area.argtypes = (ctypes.c_void_p,)
        _lib.area.restype = ctypes.c_double

        _lib.perimeter.argtypes = (ctypes.c_void_p,)
        _lib.perimeter.restype = ctypes.c_double

        self.obj = _lib.Rectangle_new(width, height)
        self._m_name = None

    def __getattr__(self, attr):
        self._m_name = attr
        return self.__call_method

    def __call_method(self, *args):
        return self._methods[self._m_name](self.obj, *args)
  • 调用
1
2
3
4
5
>>> rect = Rectangle(3, 5)
>>> rect.area()
15.0
>>> rect.perimeter()
16.0

9.5 利用 C API 构建 Python 扩展

9.5.1 构建 Python 扩展的步骤

  • 核心
  • 将Python数据类型传入C环境,在C环境中调用相应的C功能函数,并将结果转换为Python类型返回Python环境
  • 将C函数以Python能够识别的形式暴露出来

  • 步骤

  • 编写并编译C函数库
    • gcc
  • 编写扩展函数
    • static PyObject *extend_fun(PyObject *self, PyObject *args);
  • 编写模块配置信息
    • static struct PyModuleDef module_name = {...}
    • 模块函数列表
      • static PyMethodDef methods[] = {{},...}
  • 编写模块初始化函数
    • PyMODINIT_FUNC PyInit_testlib(void){return PyModule_Create(&module_name);}
  • 构建(安装)扩展
    • setup.py
    • python setup.py build_ext --inplace -f

9.5.2 扩展函数

扩展函数的定义

  • 参数与返回值
  • 扩展函数就是一个接受一个Python对象元组作为参数,并返回一个新Python对象的C函数
    • static PyObject *extend_fun(PyObject *self, PyObject *args);
  • PyObject表示任何Python对象的C数据类型

参数解析

  • PyArg_ParseTuple函数用于将Python中的值转换成C中对应表示类型,其参数包括格式字符串和用于存储传入数据的C变量的地址
  • 格式字符串的作用是对传入的Python类型进行描述,比如i代表整数,d代表双精度浮点数
格式字符 Python类型 C类型 含义
s str const char * 将一个 Unicode 对象转换成一个指向字符串的 C 指针
s* strbytes Py_buffer 既接受 Unicode 对象也接受类字节类型对象
s# str或只读bytes const char *, int 或 Py_ssize_t 结果存储在两个 C 变量中,第一个是指向 C 字符串的指针,第二个是它的长度
z strNone const char * ython 对象为 None时C 指针设置为 NULL
U str PyObject * Python 对象是一个 Unicode 对象,且不进行转换
S bytes PyBytesObject * 要求 Python 对象是一个 bytes 类型对象,且不进行转换
b int unsigned char 将一个非负的 Python 整型转化成unsigned char
h int short int 将一个 Python 整型转化成一个 C short int 短整型
i int int 将一个 Python 整型转化成一个 C int 整型
l int long int 将一个 Python 整型转化成一个 C long int 长整型
c bytesbytearray char 将一个__长度为 1__ 的 Python bytes 或者 bytearray 转化成 C char 字符类型
C str char 将一个__长度为 1 __的Python str 转化成一个 Cint 整型类型
f float float 将一个 Python 浮点数转化成一个 C float 浮点数
d float double 将一个Python浮点数转化成一个C double 双精度浮点数
D complex Py_complex 将一个 Python 复数类型转化成一个 C Py_complex Python 复数类型
O object PyObject * 将 Python 对象(不进行转换)存储在 C 对象指针中
O! object typeobject, PyObject * O 类似,但是需要两个 C 参数:第一个是 Python 类型对象的地址,第二个是存储对象指针的 C 变量的地址
O& object converter, anything 通过一个 converter*函数将一个 Python 对象转换 C 变量。需要两个参数:第一个是函数,第二个是 C 变量的地址(任意类型的),转化为 void * 类型
p bool int 结果Python布尔类型转化为 C 整型值1或0。
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
// (1) Python参数列表包含两个整数
int x, y;
PyArg_ParseTuple(args, "ii", &x, &y);

// (2) Python参数列表包含三个参数,分别为字符串、整数和浮点数
const char* x;
int y;
double z;
PyArg_ParseTuple(args, "sid", &x, &y, &z)

// (2) Python参数为列表
PyObject *seq;
PyArg_ParseTuple(args, "O", &seq);
seq = PySequence_List(seq);
int seqlen = PySequence_Length(seq);

构造返回值

  • Py_BuildValue函数根据C数据类型创建Python对象,它也接受一个格式字符串来指定期望类型,其过程与PyArg_ParseTuple相反
格式 对应Python值
Py_BuildValue("") None
Py_BuildValue("i", 123) 123
Py_BuildValue("iii", 123, 456, 789) (123, 456, 789)
Py_BuildValue("s", "hello") 'hello'
Py_BuildValue("y", "hello") b'hello'
Py_BuildValue("ss", "hello", "world") ('hello', 'world')
Py_BuildValue("s#", "hello", 4) 'hell'
Py_BuildValue("y#", "hello", 4) b'hell'
Py_BuildValue("()") ()
Py_BuildValue("(i)", 123) (123,)
Py_BuildValue("(ii)", 123, 456) (123, 456)
Py_BuildValue("(i,i)", 123, 456) (123, 456)
Py_BuildValue("[i,i]", 123, 456) [123, 456]
Py_BuildValue("{s:i,s:i}", "abc", 123, "def", 456) {'abc': 123, 'def': 456}
Py_BuildValue("((ii)(ii)) (ii))", 1, 2, 3, 4, 5, 6) (((1, 2), (3, 4)), (5, 6))

9.5.3 模块配置与初始化

  • 模块的配置信息是一个PyModuleDef类型的特殊结构体,重要的成员有
  • m_base,用于初始化模块的公共信息,取值通常为PyModuleDef_HEAD_INIT
  • m_name,模块名称;
  • m_doc,模块的文档字符串;
  • m_size,解释器状态大小,-1 表示用全局变量保存状态;
  • m_methods,模块函数列表,为一个PyMethodsDef类型的结构体数组

    • ml_name,Python 可见的扩展模块中的函数名;
    • ml_meth,扩展函数;
    • ml_flags,调用扩展函数时的参数传递方式,取值常为METH_VARARGS,表示扩展函数传入selfargs两个参数(参见第9.5.2小节第1部分);
    • ml_doc,函数的文档字符串。
  • 定义模块初始化函数

  • Python 中使用import语句导入模块时被调用
  • 必须命名为PyInit_XXX,其中XXX为模块名

9.5.4 扩展的构建与安装

  • 编写setup.py文件
  • 在命令行中使用python setup.py install命令编译扩展模块并安装至 Python 环境之中
  • 也可以使用python setup.py build_ext --inplace仅生成可被 Python 直接调用的动态链接库文件

9.5.5 示例

  • C函数库
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
// testlib.c
#include <math.h>

// 最大公约数
int gcd(int x, int y) {
    int g = y;
    while (x > 0) {
        g = x;
        x = y % x;
        y = g;
    }
    return g;
}

// 除法
int divide(int a, int b, int *remainder) {
    int quot = a / b;
    *remainder = a % b;
    return quot;
}

// 列表求均值
double avg(double *a, int n) {
    int i;
    double total = 0.0;
    for (i = 0; i < n; i++) {
        total += a[i];
    }
    return total / n;
}

// 结构体
typedef struct Point {
    double x,y;
} Point;

// 结构体参数
double distance(Point *p1, Point *p2) {
    return hypot(p1->x - p2->x, p1->y - p2->y);
}
  • 编译
1
gcc -o testlib.o -c testlib.c
  • C函数库的头文件用于在扩展函数中调用C函数库
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
// testlib.h

#include <math.h>

extern int gcd(int, int);
extern int divide(int a, int b, int *remainder);
extern double avg(double *a, int n);

typedef struct Point {
    double x,y;
} Point;

extern double distance(Point *p1, Point *p2);
  • 编写扩展模块
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
// testlibpy.c

#include "Python.h"
#include "testlib.h"

// 函数
static PyObject *py_gcd(PyObject *self, PyObject *args)
{
    int x, y, result;

    if (!PyArg_ParseTuple(args, "ii", &x, &y))
    {
        return NULL;
    }
    result = gcd(x, y);
    return Py_BuildValue("i", result);
}

// 指针作为参数
static PyObject *py_divide(PyObject *self, PyObject *args)
{
    int a, b, quotient, remainder;
    if (!PyArg_ParseTuple(args, "ii", &a, &b))
    {
        return NULL;
    }
    quotient = divide(a, b, &remainder);
    return Py_BuildValue("(ii)", quotient, remainder);
}

// 列表作为参数
static PyObject *py_avg(PyObject *self, PyObject *args)
{
    PyObject *seq;
    double *dbar, result;
    int seqlen;

    // 获取序列参数
    if (!PyArg_ParseTuple(args, "O", &seq))
        return 0;
    seq = PySequence_List(seq);

    // 将序列复制为double数组
    seqlen = PySequence_Length(seq);
    dbar = malloc(seqlen * sizeof(double));
    for (int i = 0; i < seqlen; i++)
    {
        PyObject *item = PyList_GetItem(seq, i);
        dbar[i] = PyFloat_AsDouble(PyNumber_Float(item));
    }

    // 释放空间,计算并返回结果
    Py_DECREF(seq);
    result = avg(dbar, seqlen);
    free(dbar);
    return Py_BuildValue("d", result);
}

// Point 对象的 Destructor 函数
static void del_Point(PyObject *obj)
{
    free(PyCapsule_GetPointer(obj, "Point"));
}

// 结构体:创建 Point 对象
static PyObject *py_Point(PyObject *self, PyObject *args)
{
    Point *p;
    double x, y;
    if (!PyArg_ParseTuple(args, "dd", &x, &y))
    {
        return NULL;
    }
    p = (Point *)malloc(sizeof(Point));
    p->x = x;
    p->y = y;

    // 创建capsule。capsule类似于指针
    return PyCapsule_New(p, "Point", del_Point);
}

// 结构体作为参数
static PyObject *py_distance(PyObject *self, PyObject *args)
{
    Point *p1, *p2;
    PyObject *py_p1, *py_p2;
    double result;

    if (!PyArg_ParseTuple(args, "OO", &py_p1, &py_p2))
    {
        return NULL;
    }

    // 提取capsule中的指针
    p1 = (Point *)PyCapsule_GetPointer(py_p1, "Point");
    p2 = (Point *)PyCapsule_GetPointer(py_p2, "Point");

    result = distance(p1, p2);
    return Py_BuildValue("d", result);
}

// 模块函数列表
static PyMethodDef methods[] = {
    {"gcd", py_gcd, METH_VARARGS, "greatest common divisor"},
    {"divide", py_divide, METH_VARARGS, "integer division"},
    {"avg", py_avg, METH_VARARGS, "list average"},
    {"distance", py_distance, METH_VARARGS, "point distance"},
    {"Point", py_Point, METH_VARARGS, "point"},
    {NULL, NULL, 0, NULL}};

// 配置模块
static struct PyModuleDef module = {
    PyModuleDef_HEAD_INIT,
    "testlib",        // 模块名
    "A lib for test", // 模块文档字符串
    -1,               // 解释器状态大小,-1表示用全局变量保存状态
    methods};

// 模块初始化函数
PyMODINIT_FUNC PyInit_testlib(void)
{
    return PyModule_Create(&module);
}
  • setup文件
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
# setup.py
from distutils.core import setup, Extension

setup(name='testlib',
      ext_modules=[
          Extension('testlib',
                    ['testlibpy.c'],
                    include_dirs=['/path/to/python/env/include/python3.8'],
                    library_dirs=['/path/to/file/testlib.o/'],
                    libraries=['testlib.o']
                    )
      ]
      )
  • 扩展模块构建
1
python setup.py build_ext --inplace
  • 调用
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
>>> from testlib import *
>>> gcd(35,42)
7
>>> divide(42, 8)
(5, 2)
>>> avg([1, 2, 3, 4, 5, 6])
3.5
>>> p1 = Point(1, 2)
>>> p2 = Point(4, 5)
>>> distance(p1, p2)
4.242640687119285

9.6 项目打包与发布

  • PyPI
  • Python 第三方工具包的官方仓库
  • 使用pip安装的第三方工具包就来自 PyPI

9.6.1 打包与发布的流程

  • 打包与发布的流程
  • 注册 PyPI 帐户:在 PyPI 官方注册帐户信息
  • 项目配置:编写与配置setup.py和其他相关文件
  • 打包:执行setup.py文件,将项目打包为所需要的格式
  • 发布:利用twine上传工具包。首次上传会自动创建项目,并且要求与 PyPI 仓库中已有的工具包不重复;以后每次上传要求版本号不重复

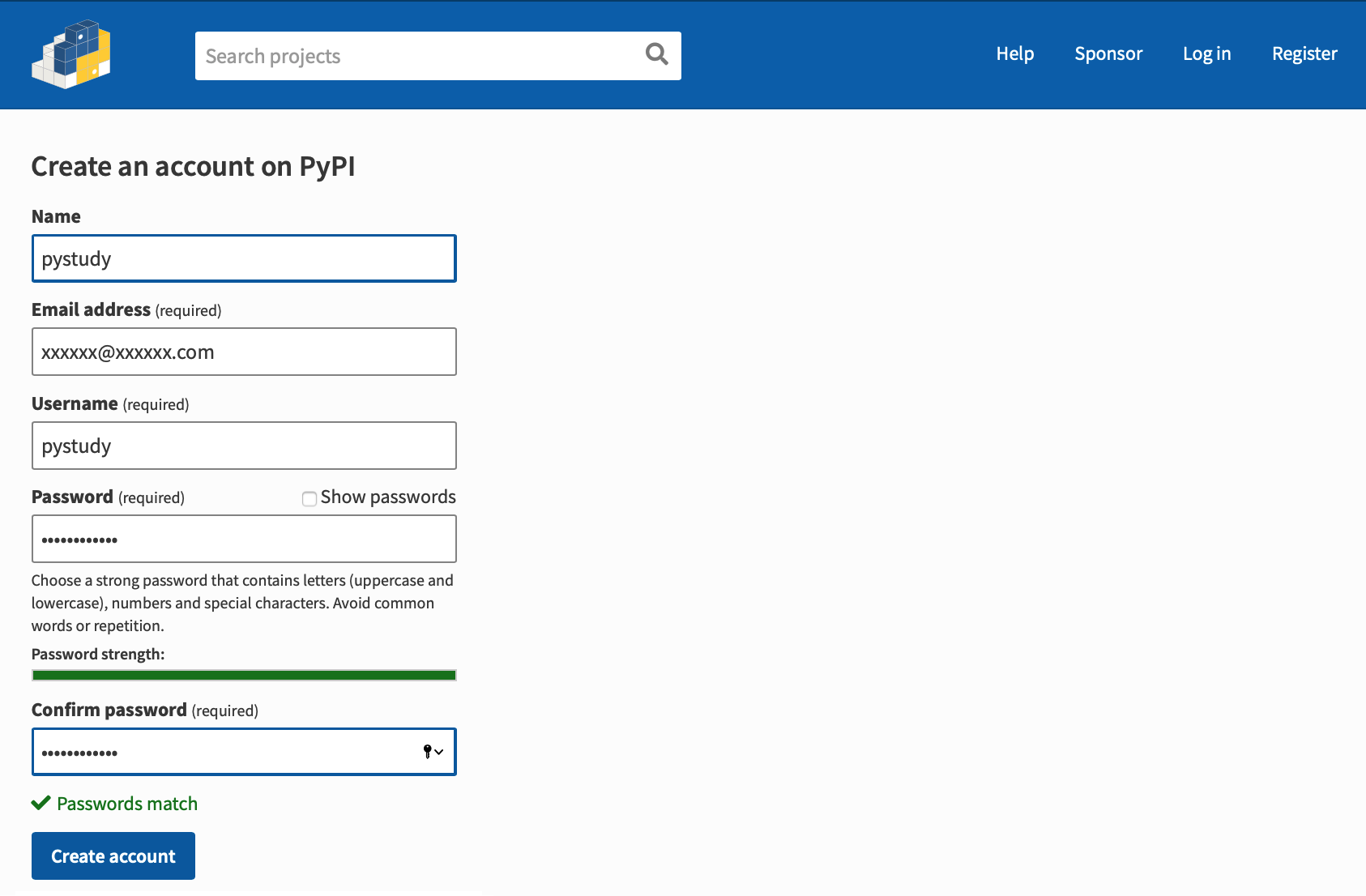

  • 注册 PyPI 帐户

  • 项目配置
  • setup 常用配置参数
参数 功能
description 工具包简要描述
long_description 工具包详细描述,常读取自 Markdown 文件
long_description_content_type 详细描述的格式,常取值为 text/markdown
classifiers 项目的分类标识,作为 PyPI 对项目进行分类的依据
keywords 项目关键字列表
packages 项目所中包的列表(包含 __init__.py 的文件夹)
py_modules 包之外的独立模块文件名
package_data 工具包所需的数据文件
data_files 需要打包的数据文件,如图片,配置文件等
ext_modules 扩展模块配置信息
install_requires 该工具包所依赖的其他工具包列表
  • 打包
  • 执行setup.py
  • 常用子命令

    • install:打包并将build目录中的文件安装至当前 Python 环境;
    • build:构建生成安装工具包所需的所有文件
    • clean:清除打包过程中生成的临时文件
    • check:检测配置信息是否有误
    • build_py:构建纯 Python 模块
    • build_ext:构建 C/C++ 扩展模块
    • sdist:创建源代码发布文件
    • bdist:创建二进制发布文件
    • bdist_wheel:创建 wheel 格式的发布文件;
    • bdist_egg:创建 egg 格式的发布文件
  • 发布

  • python -m twine upload dist/*

9.6.2 项目打包与发布示例

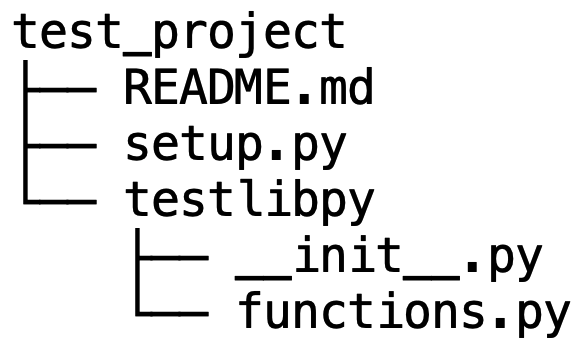

  • 项目的文件目录结构

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
# 文件 testlibpy/functions.py
import numpy as np

def add(x, y):
    return x + y

def average(lst):
    return np.average(lst)

class Point:
    def __init__(self, x, y):
        self.x, self.y = x, y

def distance(p1, p2):
    return np.sqrt((p1.x - p2.x)**2 + (p1.y - p2.y)**2)
1
2
# 文件 testlibpy/__init__.py
from .functions import *
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
# 文件 setup.py
from setuptools import setup, find_packages

desc = '工具包的简要说明'
long_description = open('./README.md').read()

setup(
    name="testlibpy",
    version="0.0.1",
    author="pystudy",
    author_email="xxxxxx@xxxxxx.com",
    license='MIT',
    description=desc,
    long_description=long_description,
    long_description_content_type='text/markdown',
    url="https://xxxxxx.com/testlibpy",
    classifiers=[ 'Development Status :: 3 - Alpha',
                  'Programming Language :: Python :: 3',
                  'Operating System :: OS Independent'],
    packages=find_packages(include=['testlibpy']),
    install_requires=['numpy > 1.15'],
    python_requires='>=3.6',
)
  • 打包:$ python setup.py sdist bdist_wheel
  • 发布:$ python -m twine upload dist/*
